Creating a cluster container registry cache with Harbor and CRI-O

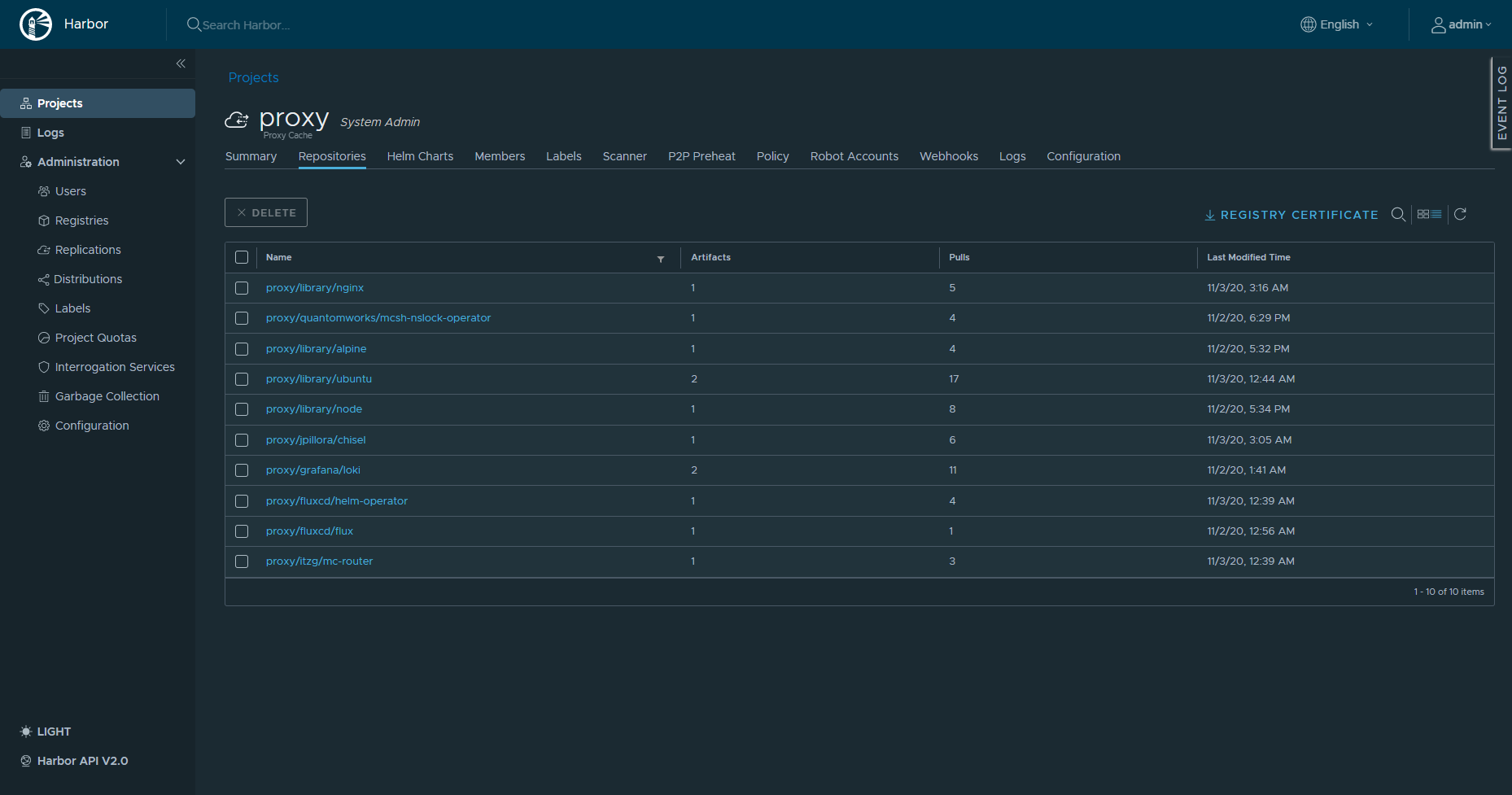

Harbor Proxy

It’s fun. It only works for CRI-O right now since the mirror requires a /project rather than just a base URL. I mean, you could maybe get fancy with some URI rewrite, but I’m not getting into that today.

TLDR

Anyway, works like this:

Install CRI-O
Set /etc/containers/registries.conf to a dummy mirror (for now, I did it the hard way with an existing harbor install, but you can do it like this and save yourself a kubectl drain node + install)
helm install harbor.
Create a project proxy with your creds.

A bit of a walkthrough.

CRIO

https://cri-o.io/ gives you a good set of walkthroughs already. Though if you’re building it for some RASPIs, then you’ll want to make it.

If you’re running Ubuntu 20, their documentation for building from source needs a bit of an update. Do this for your build tools instead:

apt-get update -qq && apt-get install -y \
  btrfs-progs \
  git \
  golang-go \
  libassuan-dev \
  libdevmapper-dev \
  libglib2.0-dev \
  libc6-dev \
  libgpgme11-dev \
  libgpg-error-dev \
  libseccomp-dev \
  libsystemd-dev \
  libselinux1-dev \
  pkg-config \
  go-md2man \
  libudev-dev \
  software-properties-common \
  gcc \
  make

git pull + checkout release-1.19 + make + make install + make install config, and you’re up and running.

Follow the rest as stated. journalctl -xeu crio if your friend if you get lost.

After that,

Harbor

https://github.com/goharbor/harbor-helm Install harbor using their chart. The chart installation files are there, though remember to change the image tags to v2.1.1 or the latest version instead of dev unless you like pulling your hair out on bad defaults and oversight.

core:
  image:
    repository: goharbor/harbor-core
    tag: v2.1.1

portal:
  image:
    repository: goharbor/harbor-portal
    tag: v2.1.1
# etc

Finally, make a project in Harbor that uses a registry. Instructions on their site here. They give example such as docker pull <harbor_server_name>/<proxy_project_name>/goharbor/harbor-core:dev if you were to use the proxy that way. Though we want this for all nodes. So back to CRI-O.

Telling the nodes

Take a look at the registries.conf documentation on github. Under the Remapping and mirroring registries section, you can specify a mirror. This feature works excellent with Harbor as we can say “anything that doesn’t have a domain attached to the image refuse this default endpoint and this mirror instead.” Great for this scenario.

So in /etc/containers/registries.conf:

# use docker.io by default for images without a domain attached
unqualified-search-registries = ["docker.io"]
# for the said docker.io domain:
[[registry]]
prefix = "docker.io"
insecure = false
blocked = false
location = "docker.io"
#Use this nice mirror we made
[[registry.mirror]]
location = "harbor.internal/proxy"

I should mention I am using metallb and Kube-router here. Configure your DNS server attached to your nodes to use the IP/domain of your harbor endpoint.

kubectl get services -n harbor
NAME                          TYPE           CLUSTER-IP       EXTERNAL-IP    PORT(S)                                     AGE
harbor                        LoadBalancer   10.109.119.72    192.168.0.11   80:30314/TCP,443:32758/TCP,4443:32086/TCP   2d2h

set insecure = true if you don’t feel like distributing the CA to your nodes or exposing it to the public.

And that’s about it. Uhh. To test:

Testing

Tail the harbor registry log:

kubectl logs -f -n harbor deployment/harbor-harbor-registry -c registry

In another window, run kubectl run hello-world --image=hello-world

Note the pod starting (ignore it crashing because it doesn’t have a primary process that it keeps active (or use nginx like I did first but don’t want to again to show proof of concept since I already pulled it))
Note the harbor logs:

time="2020-11-03T09:56:57.337908085Z" level=info msg="authorized request" go.version=go1.14.7 http.request.host="127.0.0.1:8080" http.request.id=48a82b34-e213-4b32-a300-3eee52cb8209 http.request.method=POST http.request.remoteaddr=127.0.0.1 http.request.uri="/v2/proxy/library/hello-world/blobs/uploads/" http.request.useragent=harbor-registry-client vars.name="proxy/library/hello-world"
10.244.5.155 - - [03/Nov/2020:09:56:57 +0000] "POST /v2/proxy/library/hello-world/blobs/uploads/ HTTP/1.1" 202 0 "" "harbor-registry-client"
time="2020-11-03T09:56:57.384957598Z" level=info msg="response completed" go.version=go1.14.7 http.request.host="127.0.0.1:8080" http.request.id=48a82b34-e213-4b32-a300-3eee52cb8209 http.request.method=POST http.request.remoteaddr=127.0.0.1 http.request.uri="/v2/proxy/library/hello-world/blobs/uploads/" http.request.useragent=harbor-registry-client http.response.duration=133.406756ms http.response.status=202 http.response.written=0
time="2020-11-03T09:56:57.488063294Z" level=info msg="authorized request" go.version=go1.14.7 http.request.host="127.0.0.1:8080" http.request.id=a6dbf8af-714b-4b0f-815a-de6d2992e2b3 http.request.method=PUT http.request.remoteaddr=127.0.0.1 http.request.uri="/v2/proxy/library/hello-world/blobs/uploads/db816973-b83c-440b-ad89-265fa1a0da60?_state=9omMhi_PjyQ3pT_90NDDH3aJ1dIyAsZ4PpOOuSET_8J7Ik5hbWUiOiJwcm94eS9saWJyYXJ5L2hlbGxvLXdvcmxkIiwiVVVJRCI6ImRiODE2OTczLWI4M2MtNDQwYi1hZDg5LTI2NWZhMWEwZGE2MCIsIk9mZnNldCI6MCwiU3RhcnRlZEF0IjoiMjAyMC0xMS0wM1QwOTo1Njo1Ny4zMzgwNDQzMDNaIn0%3D&digest=sha256%3Abf756fb1ae65adf866bd8c456593cd24beb6a0a061dedf42b26a993176745f6b" http.request.useragent=harbor-registry-client vars.name="proxy/library/hello-world" vars.uuid=db816973-b83c-440b-ad89-265fa1a0da60
time="2020-11-03T09:56:57.611819083Z" level=info msg="authorized request" go.version=go1.14.7 http.request.host="127.0.0.1:8080" http.request.id=b3565ead-f3d7-49c7-97b0-98fac56a2a5a http.request.method=POST http.request.remoteaddr=127.0.0.1 http.request.uri="/v2/proxy/library/hello-world/blobs/uploads/" http.request.useragent=harbor-registry-client vars.name="proxy/library/hello-world"
10.244.5.155 - - [03/Nov/2020:09:56:57 +0000] "GET / HTTP/1.1" 200 0 "" "Go-http-client/1.1"
10.244.5.155 - - [03/Nov/2020:09:56:57 +0000] "POST /v2/proxy/library/hello-world/blobs/uploads/ HTTP/1.1" 202 0 "" "harbor-registry-client"
time="2020-11-03T09:56:57.661360662Z" level=info msg="response completed" go.version=go1.14.7 http.request.host="127.0.0.1:8080" http.request.id=b3565ead-f3d7-49c7-97b0-98fac56a2a5a http.request.method=POST http.request.remoteaddr=127.0.0.1 http.request.uri="/v2/proxy/library/hello-world/blobs/uploads/" http.request.useragent=harbor-registry-client http.response.duration=135.212839ms http.response.status=202 http.response.written=0
time="2020-11-03T09:56:57.777840137Z" level=info msg="authorized request" go.version=go1.14.7 http.request.host="127.0.0.1:8080" http.request.id=196fc89d-9ad3-42a9-ab53-551c775e848c http.request.method=PUT http.request.remoteaddr=127.0.0.1 http.request.uri="/v2/proxy/library/hello-world/blobs/uploads/5ba78130-102a-4b29-919e-5f0e4ef18988?_state=ntBO86J9TrDlsNToMNa6jDGqTVN04rHiBpQdiuLrrdV7Ik5hbWUiOiJwcm94eS9saWJyYXJ5L2hlbGxvLXdvcmxkIiwiVVVJRCI6IjViYTc4MTMwLTEwMmEtNGIyOS05MTllLTVmMGU0ZWYxODk4OCIsIk9mZnNldCI6MCwiU3RhcnRlZEF0IjoiMjAyMC0xMS0wM1QwOTo1Njo1Ny42MTE5MDA3M1oifQ%3D%3D&digest=sha256%3A0e03bdcc26d7a9a57ef3b6f1bf1a210cff6239bff7c8cac72435984032851689" http.request.useragent=harbor-registry-client vars.name="proxy/library/hello-world" vars.uuid=5ba78130-102a-4b29-919e-5f0e4ef18988
time="2020-11-03T09:56:57.99348558Z" level=info msg="redis: connect harbor-harbor-redis:6379" go.version=go1.14.7 instance.id=35e007f3-71f0-486c-ad11-f9c01ae42df4 redis.connect.duration=1.54532ms service=registry version=v2.7.1.m
time="2020-11-03T09:56:57.994261345Z" level=info msg="response completed" go.version=go1.14.7 http.request.host="127.0.0.1:8080" http.request.id=a6dbf8af-714b-4b0f-815a-de6d2992e2b3 http.request.method=PUT http.request.remoteaddr=127.0.0.1 http.request.uri="/v2/proxy/library/hello-world/blobs/uploads/db816973-b83c-440b-ad89-265fa1a0da60?_state=9omMhi_PjyQ3pT_90NDDH3aJ1dIyAsZ4PpOOuSET_8J7Ik5hbWUiOiJwcm94eS9saWJyYXJ5L2hlbGxvLXdvcmxkIiwiVVVJRCI6ImRiODE2OTczLWI4M2MtNDQwYi1hZDg5LTI2NWZhMWEwZGE2MCIsIk9mZnNldCI6MCwiU3RhcnRlZEF0IjoiMjAyMC0xMS0wM1QwOTo1Njo1Ny4zMzgwNDQzMDNaIn0%3D&digest=sha256%3Abf756fb1ae65adf866bd8c456593cd24beb6a0a061dedf42b26a993176745f6b" http.request.useragent=harbor-registry-client http.response.duration=590.272098ms http.response.status=201 http.response.written=0
10.244.5.155 - - [03/Nov/2020:09:56:57 +0000] "PUT /v2/proxy/library/hello-world/blobs/uploads/db816973-b83c-440b-ad89-265fa1a0da60?_state=9omMhi_PjyQ3pT_90NDDH3aJ1dIyAsZ4PpOOuSET_8J7Ik5hbWUiOiJwcm94eS9saWJyYXJ5L2hlbGxvLXdvcmxkIiwiVVVJRCI6ImRiODE2OTczLWI4M2MtNDQwYi1hZDg5LTI2NWZhMWEwZGE2MCIsIk9mZnNldCI6MCwiU3RhcnRlZEF0IjoiMjAyMC0xMS0wM1QwOTo1Njo1Ny4zMzgwNDQzMDNaIn0%3D&digest=sha256%3Abf756fb1ae65adf866bd8c456593cd24beb6a0a061dedf42b26a993176745f6b HTTP/1.1" 201 0 "" "harbor-registry-client"
time="2020-11-03T09:56:58.265875935Z" level=info msg="redis: connect harbor-harbor-redis:6379" go.version=go1.14.7 instance.id=35e007f3-71f0-486c-ad11-f9c01ae42df4 redis.connect.duration=970.704µs service=registry version=v2.7.1.m
time="2020-11-03T09:56:58.266615239Z" level=info msg="response completed" go.version=go1.14.7 http.request.host="127.0.0.1:8080" http.request.id=196fc89d-9ad3-42a9-ab53-551c775e848c http.request.method=PUT http.request.remoteaddr=127.0.0.1 http.request.uri="/v2/proxy/library/hello-world/blobs/uploads/5ba78130-102a-4b29-919e-5f0e4ef18988?_state=ntBO86J9TrDlsNToMNa6jDGqTVN04rHiBpQdiuLrrdV7Ik5hbWUiOiJwcm94eS9saWJyYXJ5L2hlbGxvLXdvcmxkIiwiVVVJRCI6IjViYTc4MTMwLTEwMmEtNGIyOS05MTllLTVmMGU0ZWYxODk4OCIsIk9mZnNldCI6MCwiU3RhcnRlZEF0IjoiMjAyMC0xMS0wM1QwOTo1Njo1Ny42MTE5MDA3M1oifQ%3D%3D&digest=sha256%3A0e03bdcc26d7a9a57ef3b6f1bf1a210cff6239bff7c8cac72435984032851689" http.request.useragent=harbor-registry-client http.response.duration=585.817188ms http.response.status=201 http.response.written=0
10.244.5.155 - - [03/Nov/2020:09:56:57 +0000] "PUT /v2/proxy/library/hello-world/blobs/uploads/5ba78130-102a-4b29-919e-5f0e4ef18988?_state=ntBO86J9TrDlsNToMNa6jDGqTVN04rHiBpQdiuLrrdV7Ik5hbWUiOiJwcm94eS9saWJyYXJ5L2hlbGxvLXdvcmxkIiwiVVVJRCI6IjViYTc4MTMwLTEwMmEtNGIyOS05MTllLTVmMGU0ZWYxODk4OCIsIk9mZnNldCI6MCwiU3RhcnRlZEF0IjoiMjAyMC0xMS0wM1QwOTo1Njo1Ny42MTE5MDA3M1oifQ%3D%3D&digest=sha256%3A0e03bdcc26d7a9a57ef3b6f1bf1a210cff6239bff7c8cac72435984032851689 HTTP/1.1" 201 0 "" "harbor-registry-client"

And that’s about that! You’re now thinking with mirrors.
